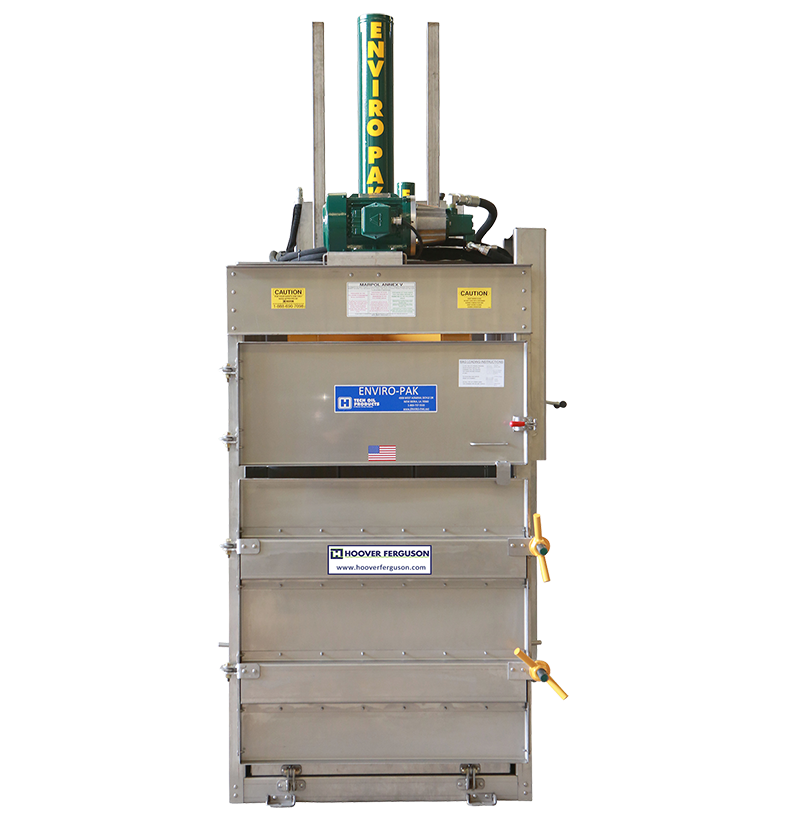

WASTE COMPACTORS

  • 316 Stainless Steel - 100% frame
  • Compacts all types of non-hazardous waste
  • Component parts are sand blasted and painted
  • Door with latch engineered for gradual release
  • Bags manufactured to a 5:1 safety ratio
  •  Air or electric operation
  • Baling capabilities available upon request
  • Improve shipboard incinerator efficiency and reduce operating time by compacting waste prior to incineration.
  • ABS Approved
  • Meets and exceeds International MARPOL 73/78 Annex V
  • Patent Pending

SPECS

  Model H2 Model H5 Model H10 Model H15
Capacity 6 ft³ 20 ft³ 45 ft³ 58 ft³
Unit Height 76 ft 89'' 120'' 125''
Unit Width 32'' 46'' 49'' 52''
Unit Depth 27'' 48'' 55'' 58''
Deck Space 6 ft² 15 ft² 19 ft² 21 ft²
Unit Weight 520 lbs 1615 lbs 1930 lbs 2100 lbs
Compaction Force 10,000 lbs 28,000 lbs 40,000 lbs 60,000 lbs
Bag Model B-600-01-07-W3 B-20M-01-07-W3.5 B-4000-01-07-W4.5-K B-5000-01-07-W5
Bag Swl 650 lbs 600 lbs 2000 lbs 2200 lbs

Note: All measurements are rounded up to the nearest whole unit or decimal.
