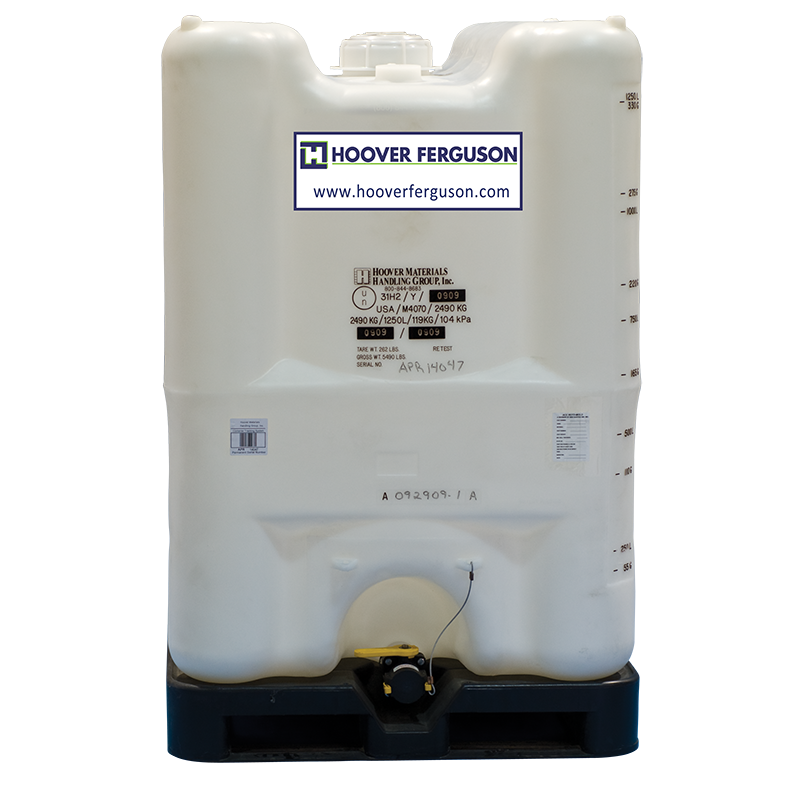

ROTOMOLDED IBCS

FEATURES

  • Unique top design: allows stacked APR’s to be interconnected
  • Roto-molded polyethylene bottle with 2-1/2” radius corner bottle for greater strength and easy cleaning
  • 2” raised boss heavy-duty 6” fill cap standard with two 2” bung plugs
  • 2” outlet with ball valve, quick connect valve and dust cap
  • Recessed placecard areas on all four sides
  • UN markings, meets all UN requirements for PG II and PG III
  • Embossed gallon and liter markings
  • 4-way fork and 2-way pallet jack access
  • Injection-molded polyethylene pallet
  • Reusable, returnable
  • Meets all UN requirements for PG II and 1.9 specific gravity (330 does not meet this for stacking test)
  • 48" x 40" (121.9 cm x 101.6cm) base dimensions are the international standard for shipment worldwide
  • 4-way fork and 2-way pallet jack access
  • Industrial use for hazardous chemical storage, storage of food products such as yogurt and honey, transportation or storage “juice” or unprocessed wine
  • Unique Top Design: allows stacked APR®s and other Hoover Ferguson IBCs to be interconnected
  • 2" (5.08 cm) raised boss heavy-duty 6" (15.2 cm) fill cap standard with two 2" (5.08 cm)bung plugs
  • Stackable, roto-molded Polyethylene Bottle
  • Bottle Construction: Roto-molded LLDPE
  • Enclosed fork pockets (all four sides)
  • Quick connect valve attachment

SPECS

Nominal Capacity

Nominal Width Nominal Length Nominal Height Approx. Tare Weight Max Gross Weight  Product Number

275 gallon

40” 48'' 53'' 242 lbs 4600 lbs 410073

330 gallon

40” 48'' 60'' 262 lbs 5494 lbs 410026
